Key differences between Chorus, Flanger & Phaser Explained

Last Updated on December 22, 2020 by IDS Team



If guitars were rifles, pedal effects would be ammunition.

There’s only so much you can achieve with a clean guitar sound, and it’s more than safe to say that effects such as Chorus, Flanger, and Phaser are capable of completely shifting and changing your tone, for better or worse.

Now, skilled guitar players instinctively know the differences between various pedal effects, but most of the time people are more concerned about where and when they can use a certain type of sound rather than wreck their heads trying to explain ‘how and why’.

Today we are going to attempt to thoroughly examine some of the key differences between chorus, flanger, and phaser effects, so buckle up and stay for a while.

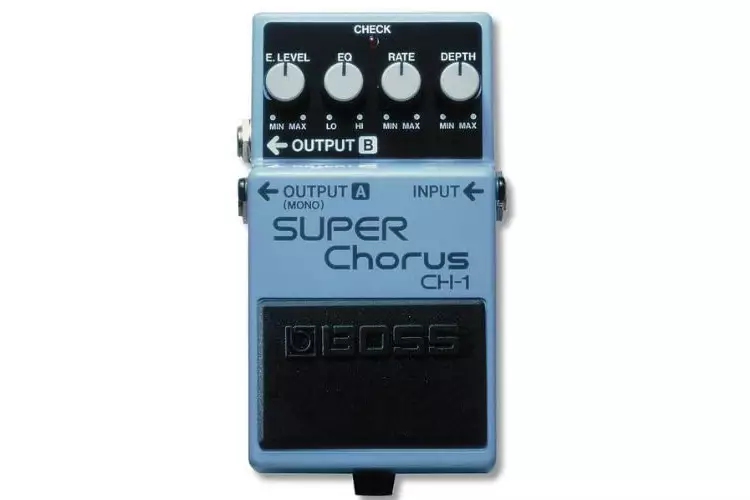

Chorus in a nutshell

The ‘chorus effect’ is easily one of the most iconic pedal effects among guitar players.

We could go as far as to call it ‘choir-us’ mainly because it’s supposed to make the guitar sound much bigger than it actually is.

It’s ideal for single-guitar bands, troupes, and performers who want to duplicate (or triplicate) their sound in a live setting and for studio musicians who don’t particularly like laying down numerous tracks where they can achieve the same effects with a pedal as simple as this.

How it works

The Chorus effect modulates the pitch of your tone ever so slightly; it basically reproduces the exact signal of your guitar’s vibrations but at a slightly different pitch and time.

The potential of the chorus effect is vast, which means that it can subtly enhance the depth of your tone or it can simulate another live guitar, depending on how you set its parameters.



In a bit more technical terms, the chorus effect is achieved when the pedal takes the signal before melding it with pitch-modulated copies of the original signal.

Depending on the model and parameters, the post-produced signal copy can be singular or there could be numerous. The more ‘layers’ the pedal makes, the bigger your tone will become.

How to use it properly

Essentially, it’s a straightforward effect that doesn’t exactly require much skill and experience to be used, although it’s kind of addictive in the sense that it may leave you with the feeling that you always need ‘more’.

It’s a modulation pedal, which basically means that it’s supposed to sit at the back end of the signal chain, right after wah-wahs, compressors, overdrives, or distortions.

Due to the fact that chorus pedals aren’t necessarily the most intricate contraptions and feature only a handful of control knobs, you’ll typically only have depth and rate to worry about.

Set these parameters low to enrich your sound in a subtle, delicate way; when set at halfway you’ll add plenty of character to your tone while going anywhere beyond this point is not recommended if your signal chain is encumbered as it is.

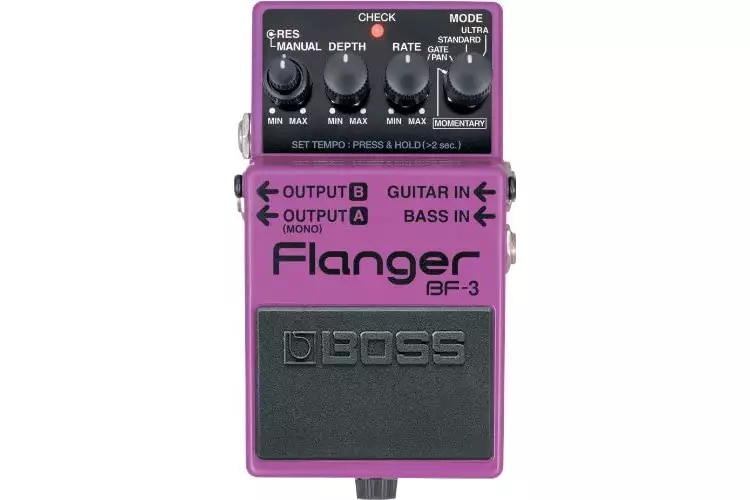

Flanger in a nutshell

The flanger effect is one of the most enigmatic guitar gizmos to this day; it was artificially created (by accident) in old-school studios back in the tape-recording days (4-track and 8-track machines) by touching the flange (the rim of the tape), although nowadays the process of ‘flanging’ has been tamed and digitalized.

The ‘flanger’ effect sports characteristics of numerous other pedal effects – it’s based on delay pedals, but its unpredictability often leads it towards phasers, overdrives, and distortions, obviously depending on its parameters.

Furthermore, this effect was created by playing two tracks at the same time, which further means that it also shares some similarities with choruses to some extent. As we’ve already discussed, chorus pedals modulate and blend the altered signal with the original one, which is partially what happens with the ‘flanging’ effect too.

How it works

Flanger works in the same way as most modulation pedals do; this pedal splits the signal in 2 identical paths where the original is untouched and the second one is just slightly delayed (measured in milliseconds).

The tweaked signal is then modulated both by speeding it and slowing it cyclically. The ‘modulated’ signal is then blended with the original signal.

What’s most important to understand about flangers is that their altered signal is actually tweaked at ‘random’ unpredictable intervals whereas other modulation pedals offer more control and precision.

The randomness of this effect is the reason why some people use it as their go-to pedal and other guitarists avoid it.

How to use it properly

Flanger pedals are by default wild and pretty hard to tame, but there are more ways than one by which you can gap the small obstacles they present.

The most intimidating parameter of typical flangers is the ‘manual control’, which basically allows guitarists to pick and choose which frequencies they want to alter.

When untouched, the pedal will automatically calculate compatible frequencies and reinforce them (incompatible frequencies will always nullify each other), leading to a slightly clearer tone without sacrificing the punchy feel.

Most flangers typically feature ‘resonance’ or ‘intensity’, both of which relate to the same thing. This parameter affects the effect’s intensity by clipping or feeding a portion of the delay straight back to the original input.

By increasing the ‘intensity’ you’ll add more grit to your tone and achieve a more distorted high-gain sound.

Phaser in a nutshell

Phaser pedals sound almost identical to laymen and beginner guitarists, but in actuality, they share more differences than similarities.

This effect can potentially be used to achieve a mild flanging effect only if its parameters are basically untouched and set on ultra-low settings.

A well-known fact among veteran guitar players is that the phaser effect was introduced to the scene around the same time when flangers came to be. This is probably the reason why new-school players typically don’t make a clear distinction between the two.

In a nutshell, Phasers create a swirling-like sound, much akin to a plane taking off with the only difference being that it is constantly circulating in the fashion of stereo speakers.

One of the most notable benefits of Phaser pedals is that it allows guitar players to create a much bigger atmosphere and ambient, even with smallish amps and relatively mediocre gear.

How it works

Flangers and phasers operate on similar principles; the original signal is divided into two paths, one path is modulated and the other is completely untouched.

The modulated signal path passes through a series of all-pass filters, which shift the signal’s phase revolving around a variety of (pre-calculated) frequencies. In this regard, the Phaser is not as unpredictable as the flanger, but it’s not as controllable as the chorus.

The modulated signal path is later mixed with the untouched signal path, which results in the ‘swooping’ circular tone.

How to use it properly

The Flanger effect is significantly less punishing towards beginner players; its parameters are not as sensitive, and it’s a bit more versatile altogether.

As far as we’re talking about the signal chain, most people don’t use both flanger and phaser pedals, so you should ideally place either of the two near the end of the chain (after distortion, equalizers, compressors, delays, and choruses).

Typical phaser pedals (such as MXR’s Phase 100) feature simplistic tone controls like Intensity and Speed. The ‘intensity’ basically governs the number of phased stages whereas the ‘speed’ affects the rapidity of signal shifts.

In simpler words, the ‘intensity’ knobs allow you to create different ‘geometric’ signal patterns while the ‘speed’ knobs are there for you to finalize and shape them in more concrete ways.

Similarities between Chorus, Phaser, and Flanger

Essentially, Chorus, Phaser, and Flanger pedals belong to the ‘modulation effect’ category.

Aside from this little formality, they’re also meant to be used in similar ways and operate under similar principles.

All three of these effects divide the original guitar signal path in two after which they alter it in different ways. Although the outcomes are vastly different, these split signals all utilize delays to modulate the frequencies.

From a more practical side, all of these effects have been made available in both pedal and plug-in formats.

The initial modes of achieving chorus, flanger, and phaser (particularly the last two) were almost unwieldy and required a dose of technical expertise, whereas today these effects are beginner-friendly and suitable for use by immediate beginner players.

In technical terms, these pedal effects always leave one signal path completely untouched, which means that at least ‘half’ of your tone will remain exactly the same as it originally was, even though this is not entirely a quantifiable matter.

Even though there are numerous minor other similarities, the most crucial and highlighted ones are:

  1. Chorus, Phaser, and Flanger effects all belong to the ‘modulation’ category
  2. The same method of operation and functional principles
  3. The unfiltered signal path is always non-modulated and identical to the original
  4. All three effects utilize delays to affect the filtered signal path
  5. Modern-day pedals have made these effects more accessible to beginner guitar players

Differences between Chorus, Phaser, and Flanger

Now that we’ve touched upon the similarities between Chorus, Phaser, and Flanger it’s time to dig into the main course – the key differences that separate them.

Though there are many dissimilarities between them, we’ve plucked out the most notable ones and grouped them in the appropriate categories, starting with…

Sonic differences

The Chorus effect is, essentially, much different from Phaser and Flanger, at least sound-wise. It’s ‘mellow’ tonally whereas Phaser and Flanger are closer to overdriven types of sounds.

Even when the parameters of a Chorus pedal are set to their extremes the end result still boasts clarity when isolated. However, choruses are seldom used as standalone effects.

This pedal effect is more of an ‘adhesive’ type in the sense that it extends itself across the spectrum of other effects used in the chain. Phasers and Flangers tend to dominate the chain with their grit.

Differences in application

Distortion effects are commonly associated with rock & heavy metal while chorus, phaser, and flanger effects can be used in pretty much any music genre and can fit into any playing style.

These effects are as versatile as the player’s creativity; in that regard, they can be used in almost any song or performance piece, although exceptions should be obvious.

Since phasers and flangers affect the frequencies of the guitar’s signal in a relatively similar way, they almost cross each other out.

In simpler words, most guitar players use either a phaser pedal or a flanger; rarely both.

Differences in versatility

In this particular scenario, ‘versatility’ refers to the flexibility and freedom as far as tweaking with control knobs and parameters are in question.

Tuning up all the knobs to their extreme would make any sound muddy, but especially so in the case of phasers and flangers.

As mentioned before, these effect types tend to dominate the signal chain, which oftentimes diminishes the presence of other pedals and effects.

In that regard, Phasers and Flangers are slightly less versatile than choruses.

Obviously, Phase and Flange pedals are fairly different between themselves too. Phasers are slightly easier to control, but more importantly, they offer a more calculated and more predictable approach to tone-tweaking.

 On the opposite end of the spectrum, Flangers don’t affect the tone so drastically and can be used for extended periods of time without compromising the tone’s integrity.

The swirling of Phasers makes them ideal for song parts that need to be accentuated (particularly solo sections) whereas Flange pedals can easily substitute for overdrive and distortion when need be.

Conclusion

Every pedal effect type is different. Moreover, every model is different from another; two different pedals that belong to the same category can be so strikingly different that some people would assume they serve different purposes.

Even so, the contrasts between Chorus, Flanger, and Phaser are undeniable and to a certain extent obvious.

From the variance in sound, over dissimilarities in application to differences in application, by now we hope that we’ve helped you make a distinction between these pedal effects.
